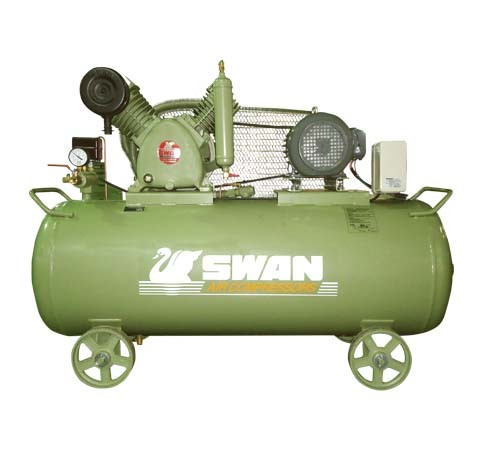

Swan Air Compressor H Series HVP-203
SWAN air compressor SH series are high efficient two stage compression, large displacements, smooth continuously operating. The strong heat dissipation design prolongs its service life and saves more cost.
Specifications
| Motor | 2.2kw / 3hp |
| Working Pressure (kg/cm²) | 12 Bar (16 Bar Maximum) |
| Compressor Speed | 960 rpm |
| F.A.D | 270 L/min |
| Tank Capacity | 237 Liter |
|
Compressor Block Physical Dimension
(L x W x H)
|
500mm x 330mm x 400mm |
| Weight (Bare Head only) | 47kg |
|
Compressor Unit Physical Dimension
(L x W x H)
|
1470mm x 550mm x 1100mm |
| Weight (Whole Unit) | 205kg |
