3SDM2.5/11 , 3SDM1.8/15 , 3SDM1.8/27 , 3SDM1.8/39 , 3SDM2.5/21 , 3SDM2.5/31 ,

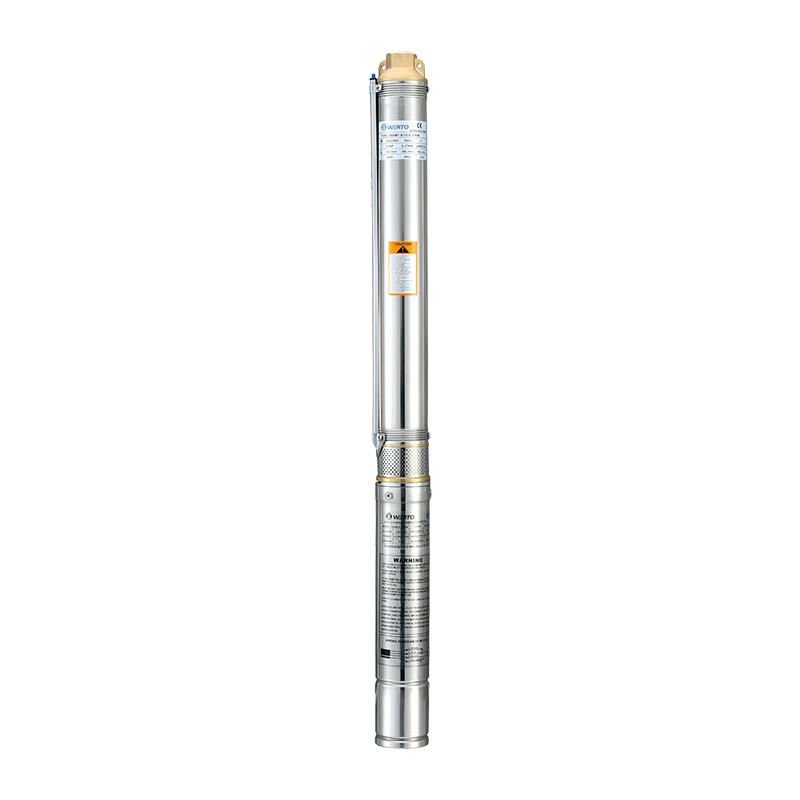

PRODUCT DESCRIPTION
| Components | Material |
| Pump external casing | AISI 304 SS |
| Delivery casing | Cast-Cu ASTM280 |
| Suction lantern | Cast-Cu ASTM280 |
| Diffuser | Plastic.PC |
| Impeller | Plastic.POM |
| Shaft | 1.AISI 316 SS 2.AISI 304 SS |
| Shaft coupling | 1.AISI 316 SS 2.AISI 304 SS |
| Wear ring | AISl 304 SS |
| Motor external casing | AISI 304 SS |
| Top cover | Cast-Cu ASTM280 |
| Bottom support | AISl 304 SS |
| Mechanical seal | Special seal for deep wellcarbon-SIC/TC) |
| Shaft | AlSl304 SS -C1045 |
| Bearing | C&U |
| Seal lubricant oil | Oil for food machinery and pharmaceutic use. |
|
MODEL
|
P2 |
DELIVERY
n=2850 l/min
|
||||||||||||||
|
1~
220-240v
|
KW
|
HP
|
m³/h
l/min
|
0 |
0.3
|
0.6
|
0.9
|
1.2
|
1.5
|
1.8
|
2.1
|
2.4
|
2.7
|
3
|
3.3
|
3.6
|
| 0 | 5 |
10
|
15
|
20
|
25
|
30
|
35
|
40
|
4S
|
50
|
55
|
60
|
||||
|
3SDM1.8/11
|
0.25
|
0.33
|
H
m
|
48
|
47
|
47
|
46
|
44
|
4o
|
36
|
30
|
24
|
15
|
|||
|
3SDM1.8/15
|
0.37
|
0.5
|
65
|
64
|
64
|
63
|
60
|
55
|
49
|
41
|
33
|
21
|
||||
|
3SDM1.8/21
|
0.55
|
0.75
|
91
|
90
|
90
|
88
|
84
|
77
|
68
|
58
|
46
|
29
|
||||
|
3SDM1.8/27
|
0.75
|
1
|
117
|
116
|
115
|
113
|
107
|
99
|
88
|
75
|
59
|
38
|
||||
|
3SDM1.8/39
|
1.1
|
1.5
|
168
|
168
|
167
|
163
|
155
|
143
|
127
|
108
|
85
|
55
|
||||
|
3SDM2.5/8
|
0.25
|
0.33
|
32
|
32
|
31
|
30
|
30
|
29
|
27
|
26
|
24
|
21
|
18
|
13
|
8
|
|
|
3SDM2.5/11
|
0.37
|
0.5
|
4a
|
43
|
43
|
42
|
41
|
39
|
37
|
35
|
32
|
29
|
24
|
18
|
11
|
|
|
3SDM2.5/16
|
o.55
|
0.75
|
64
|
63
|
62
|
61
|
59
|
57
|
54
|
51
|
47
|
42
|
35
|
27
|
16
|
|
|
3SDM2.5/21
|
0.75
|
1 |
84
|
83
|
82
|
80
|
78
|
75
|
72
|
68
|
62
|
56
|
46
|
35
|
21
|
|
|
3SDM2.5/31
|
1.1
|
1.5
|
124
|
122
|
121
|
118
|
115
|
111
|
106
|
100
|
91
|
82
|
68
|
52
|
31
|
|
 |
MODEL
|
DN
|
DIMENSIONS(mm) |
WEIGHT(kg)
|
|
|
1~
220-240v
|
L1
|
L |
G
|
||
|
3SDM1.8/11
|
1''/11/4''
|
444
|
752
|
6.9
|
|
|
3SDM1.8/15
|
1''/11/4''
|
535
|
873
|
8
|
|
|
3SDM1.8/21
|
1''/11/4''
|
694
|
1062
|
9.6
|
|
|
3SDM1.8/27
|
1''/11/4''
|
830
|
1238
|
11
|
|
|
3SDM1.8/39
|
1''/11/4''
|
1101
|
1594
|
14.9
|
|
|
3SDM2.5/8
|
1''/11/4''
|
405
|
713
|
6.6
|
|
|
3SDM2.5/11
|
1''/11/4''
|
483
|
821
|
7.7
|
|
|
3SDM2.5/16
|
1''/11/4''
|
613
|
981
|
8.9
|
|
|
3SDM2.5/21
|
1''/11/4''
|
768
|
1176
|
10.7
|
|
|
3SDM2.5/31
|
1''/11/4''
|
1029
|
1522
|
14.1
|
|
